Dental office layout basics: rooms, corridors and adjacencies

A dental office is easier to plan once it is split into three zones. The public zone holds the reception and waiting area, the route in and out, and often a restroom for patients. The clinical zone holds the treatment rooms and the support spaces that feed them. The staff zone holds the back office, the staff room, and the areas no patient ever enters. The three zones do not have to sit in a straight line, but they do need clear edges: a patient should never have to walk through the staff room, and a staff member should never have to cross the waiting room to reach the sterilisation room with a tray in hand.

Naming the zones early matters because the boundaries rarely move. Moving a wall inside a zone during design is ordinary. Moving the line between clinical and staff after the equipment plan is drawn is expensive, and moving it after construction is worse. Practices that settle the three zones before the architect starts drawing rooms tend to avoid the change orders that come from a reception desk sitting where the staff room was meant to be.

Treatment rooms take roughly a quarter to a third of the total plan in a typical office, which makes them the largest single line in the programme. A general dental room with one chair, a delivery unit, a cabinet run, a sink and space for a dental assistant usually lands somewhere between 10 and 14 square metres. A room for two chairs on the same surgical field runs larger. A room used for oral surgery or implant work needs enough clear floor to move a cart around the chair, and a room that will host sedation carries additional requirements that the American Dental Association practice management and accessibility pages do not break down by procedure.

At the front of the room, the chair controls where the delivery system, the light and the assistant's stool sit. At the back, a worktop and a sink hold the day's materials. Between them, a gap needs to survive the patient, the chair, the assistant and the operator at once, and this clearance is the first dimension practices underestimate. The treatment room planning guide sets out the chair, cabinet and clearance logic room by room, and the figures a practice settles on there should be the ones written into the equipment plan.

Reception does two jobs at once: it is where the public decides what kind of practice this is, and it is where staff manage the day's schedule, payments and recalls. The counter needs a patient side and a staff side, with enough depth for a monitor and a file, and enough separation that a person checking in cannot read a clinical note on the screen behind. Waiting seating is usually sized to the number of treatment rooms multiplied by one or two occupants, with circulation kept clear of the chairs.

The reception and waiting zone guide covers the counter geometry, seating and sight lines. Two practical points run through all of it. First, the receptionist should see the front door and the route to the clinical zone without leaving the desk. Second, the route from the front door to the treatment room should be short, direct and available; a patient who walks the full length of the waiting room before reaching a chair has a longer, more public journey than most practices intend.

The back of house is the zone patients rarely see, and sterilisation is its centre of gravity. Because the work has a dirty side and a clean side that must not mix, the room usually sits between the treatment rooms and the staff area so that trays travel from chair to decontamination in one short, unshared route. The sterilization area planning guide explains why the layout of the bench matters more than the size of the room: an instrument that has to cross the clean bench before it is wrapped defeats the separation the two benches exist to create.

The rest of the staff zone is smaller and less technical. An office, a staff room, a restroom and a place for coats and bags are the usual pieces. Their dimensions are modest, but they should not be squeezed into leftover corners, because they sit on the same routes that carry staff between the front desk and the treatment rooms all day.

Once the zones and rooms are drawn, the layout is only as good as the routes between them. Three routes carry nearly all the traffic in a dental office: patients from the front door to a treatment room and back out again; staff from reception to the clinical zone and to the back of house; and instruments and supplies from the sterilisation room out to the chairs. Each should be short, separate where it needs to be, and wide enough for two people or a trolley to pass without one of them stepping into a doorway.

Corridors in a dental office are commonly planned around a metre wide, with the wider routes reserved for the paths that carry equipment. The staff movement routes guide goes into how morning setup, room turnover and end-of-day tasks all lean on the same handful of metres, which is why a plan that works on the drawing can still feel tight at 9am. A patient route and a staff route can overlap, but a soiled-tray route should not run through the waiting room, and a patient should not be able to see the sterilisation room bench from the chair.

Every dental office is a public accommodation for the purposes of the Americans with Disabilities Act, and new construction and alterations must meet the ADA Standards. Those standards are issued by the Department of Justice and the Department of Transportation and are based on guidelines set by the U.S. Access Board, which also provides technical assistance and training on them. The standards apply to doors, corridors, restrooms, clear floor space and reach ranges, among much else.

Two dates matter for anyone working from an existing drawing. The Department of Justice adopted the current ADA Standards on 15 September 2010, and they became mandatory on 15 March 2012. Any renovation plan drawn against an older set of requirements should be checked against the 2010 Standards before construction starts, because the clearance that was acceptable in 1991 is not always the clearance that applies now. The Access Board also maintains a guide to the ADA Standards that illustrates the provisions and includes a series of animations on accessibility, for practices comparing their plan to the rules.

The order of work is simple even when the plan is not: zones first, then room sizes, then circulation, then the equipment plan that fills the treatment rooms. A dental office layout holds together when those four steps agree. A reception desk drawn before the clinical zone is fixed will move. A treatment room sized before the chair is chosen will look generous on paper and cramped in use. A corridor left as the space remaining between rooms will decide the practice's daily routines whether anyone intended it to or not.

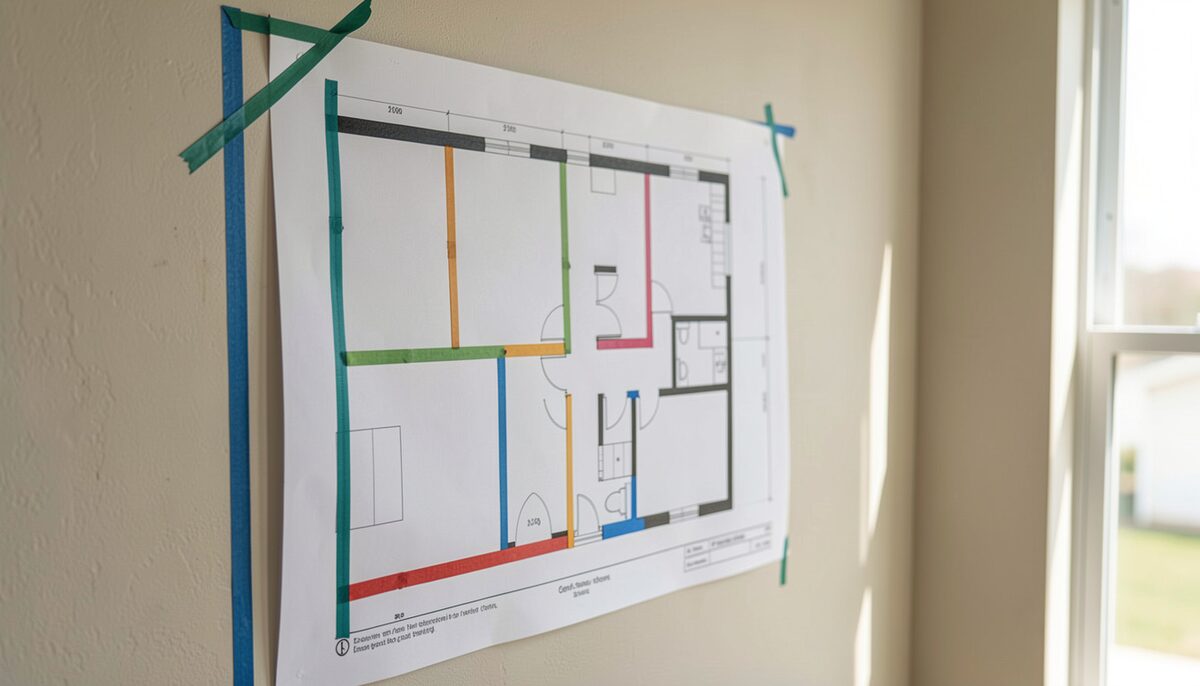

Start the sketch with the three zones in three colours, then place the sterilisation room, then draw the patient route from the front door to the chair and back out again. Anyone who can do that on a single sheet already has the argument of the plan in hand, and the rest is dimensioned drawing.
